New positions in our product range: Steel Sheet Art. 09G2S 2 mm
Riffled sheet 10mm
Galvanized steel sheet 2.5 mm
Galvanized steel sheet 1.2 mm
Galvanized wire 1.8 mm
Galvanized wire 2 mm
Galvanized wire 2.5 mm
Galvanized wire 3 mm
Galvanized wire 4 mm
Galvanized wire 6 mm

Ваш заказ
В корзине 0 товара

Expanded steel sheet - prices updated 28.11.2018 to 8:59

Expanded steel sheet is available in our various branches, you can choose the branch you need, the type and size of products and order online:

Presents the actual prices for metal. Expanded steel sheet is available in our various branches, you can choose the branch you need, the type and size of products and order online. Attention Prices are subject to prepayment! There is a surcharge for a batch of less than 1 ton, more details from the manager.

Select branch Select product Name Select size
Product Name Size Length Other Weight
1 PC/kg.
On stock
(ton)
Price
1 PC
Price
1 - 5 tons
Price от
5 - 15 tons
Price
> 15 tons
Branch
Steel Sheet ПВЛ 306 *110*1000*2000,,,3500 с просечкой 39.960 0.07 1954.04 44900 44900 44900 Novocherkassk
 т.  Add
Steel Sheet ПВЛ 306 *110*1200*1800,,,3500 с просечкой 42.572 1.15 2315.94 49900 49700 49500 Bryansk
 т.  Add
Steel Sheet ПВЛ 306 *110*1200*1800,,,3500 с просечкой 41.646 1.28 2290.53 50500 49500 48500 Voronezh
 т.  Add
Steel Sheet ПВЛ 306 *110*1200*1800,,,3500 с просечкой 42.642 0.42 2277.07 48900 48700 48500 Kazan
 т.  Add
Steel Sheet ПВЛ 306 *110*1200*1800,,,3500 с просечкой 42.750 0.05 2261.47 48900 48700 48500 Novocherkassk
 т.  Add
Steel Sheet ПВЛ 306 *110*1200*1800,,,3500 с просечкой 43.680 0.70 2380.56 50000 49800 49600 Orel
 т.  Add
Steel Sheet ПВЛ 306 *110*1250*1800,,,3500 с просечкой 37.200 0.29 1986.48 48900 48700 48500 Kazan
 т.  Add
Steel Sheet ПВЛ 306 *110*1250*1800,,,3500 с просечкой 37.996 1.05 2066.98 49900 49700 49500 Samara
 т.  Add
Steel Sheet ПВЛ 306 *110*1250*1800,,,3500 с просечкой 38.000 0.11 2048.21 48900 48700 48500 Elektrougli
 т.  Add
Steel Sheet ПВЛ 308 *110*1200*2000,,,3500 с просечкой 44.067 2.59 2353.17 48900 48700 48500 Kazan
 т.  Add
Steel Sheet ПВЛ 308 *110*1200*2000,,,3500 с просечкой 42.771 1.80 2262.59 48900 48700 48500 Ufa
 т.  Add
Steel Sheet ПВЛ 308 *110*1250*2000,,,3500 с просечкой 37.550 1.02 2065.24 50500 49500 48500 Voronezh
 т.  Add
Steel Sheet ПВЛ 308 *110*1250*2000,,,3500 с просечкой 39.960 3.48 2113.88 48900 48700 48500 Novocherkassk
 т.  Add
Steel Sheet ПВЛ 308 *110*1250*2000,,,3500 с просечкой 38.128 0.11 2074.19 49900 49700 49500 Pyatigorsk
 т.  Add
Steel Sheet ПВЛ 308 *110*1250*2000,,,3500 с просечкой 38.628 4.88 2089.77 49600 49400 49200 Krasnodar-North
 т.  Add
Steel Sheet ПВЛ 308 *110*1250*2000,,,3500 с просечкой 38.295 4.42 2064.10 48900 48700 48500 Elektrougli
 т.  Add
Steel Sheet ПВЛ 406 *110*1000*1900,,,3500 с просечкой 46.363 0.51 2336.72 46400 46200 46000 Orenburg
 т.  Add
Steel Sheet ПВЛ 406 *110*1000*1900,,,3500 с просечкой 47.500 10.72 2370.26 45900 45700 45500 Novocherkassk
 т.  Add
Steel Sheet ПВЛ 406 *110*1000*1900,,,3500 с просечкой 48.982 2.53 2566.65 47900 47700 47500 Nizhny Novgorod
 т.  Add
Steel Sheet ПВЛ 406 *110*1000*1900,,,3500 с просечкой 48.333 3.26 2435.99 47400 47200 47000 Nalchik
 т.  Add

 [1] 2 3 4 View more >>

Expanded steel sheet - техническая информация:

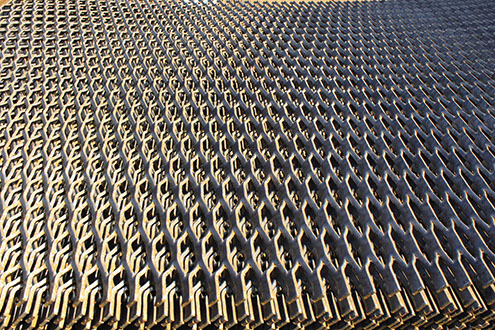

Expanded steel sheet

View price - Expanded Steel Sheet

Expanded Steel Sheets (TU 0971-001-55980712-2012) - flat rolled stock, characterized by a ribbed surface, which provides the sheet with greater adhesion of surfaces, which is used at an ambient temperature of -65 degrees C and higher.

Expanded metal sheet is made using the technology of simultaneous perforation and extraction using powerful pressing equipment. It is used for the manufacture of platforms and steps of marching stairs, ladders, pedestrian bridges, walkways in the oil, gas, petrochemical industry, for safety fences, for the manufacture of various containers, sifting various rocks, as a reinforcing component for applying plaster. Due to the available holes in the sheet, the expanded metal sheet has excellent anti-slip properties, light permeability, ventilation, does not trap snow and mud, simplifies the design, increases the area of overlapping objects, up to 60% compared to a smooth sheet. The Expanded Steel Sheethas the high level of rigidity and is the bearing constructional ability.

Expanded Steel Sheet grade

Expanded Steel Sheets produce:

- from sheet steel according to state standard specifications: GOST 14637, GOST 16523
- from steel grades according to state standard specifications: GOST 380-94
- thickness of the rolling sheet from 1 to 6mm
- width of finished products from 500 mm to 1250 mm
- with cells in the form of "scales" (expanded metal grating) and in the form of rhombuses. AO Metallotorg manufactures sheets with a cut-out type “scales” (expanded metal grating).

  The standard product range of Expanded Steel Sheets in AO Metallotorg is represented by sheet numbers: 406, 408, 506, 510, 608, 610.



In our prices, the name "Expanded Steel Sheet 508x110x1000x2000 ... 3000" denotes the expanded metal, the figure "508" means the following: 5mm thick tack
08mm - knife feed (lintel thickness);
110mm - cell pitch,
1000x2000 ... 3000 - the corresponding cutting sheet

The symbol of Expanded Steel Sheet should consist of the designation of the type of cut-out form, width, sheet length in mm, steel grade of the base and the designation of technical conditions (TU). Example of marking when ordering a sheet:

Expanded Steel Sheet1 510x1000x2500 TU 0971-001-55980712-2012 - -
St3sp GOST 380-94

Expanded metal sheet with a form of notching type 1, sheet number 510, width 1000 mm, length 2500 mm, made of steel St3sp according to GOST 380-94.




The main parameters, dimensions and weight of Expanded Steel Sheet (TU 0971-001-55980712-2012) ..

  Mark (number) ista

Workpiece thickness mm

Knife feed, B, mm

  Thickness metal, S, mm

    Step cells, V, mm

 The size of the hood, A, mm

  Mass 1 sq m / kg

306

3

6

12

90

10

12,9

308

3

8

14

90

10

14,63

406

4

6

12,7

90

10

15,7

408

4

8

16,8

90

10

19,24

410

4

10

19

110

12,5

17,21

506

5

6

13

90

10

20,29

506

5

6

13

90

12,5

17,12

508

5

8

17

110

12,5

19,3

508

5

8

16,7

110

19

19,3

510

5

10

20

110

12,5

23,41

510

5

10

20

110

19

24,41

606

6

6

13

110

12,5

20,66

608

6

8

16,6

110

16

20,3

608

6

8

17

110

12,5

25,41




Buy cold rolled sheet

You can buy a cold-rolled sheet of all types produced from our warehouses of branches, warehouses of the Moscow region or directly from the factory. We provide services for cutting, delivery and completion of the sheet. Availability, assortment of cold-rolled sheets and the price list of metal sheet you can see on the website. For more information on the price of cold-rolled steel sheet , specify the sheet weight and calculate the quantity, draw up an invoice and make a request, clarify payment options and request a certificate for the metal already taken - contact the manager

phone (8452) 57-00-18,  e-mail: korneev@metallotorg.ru

Expanded steel sheet - look prices>>
